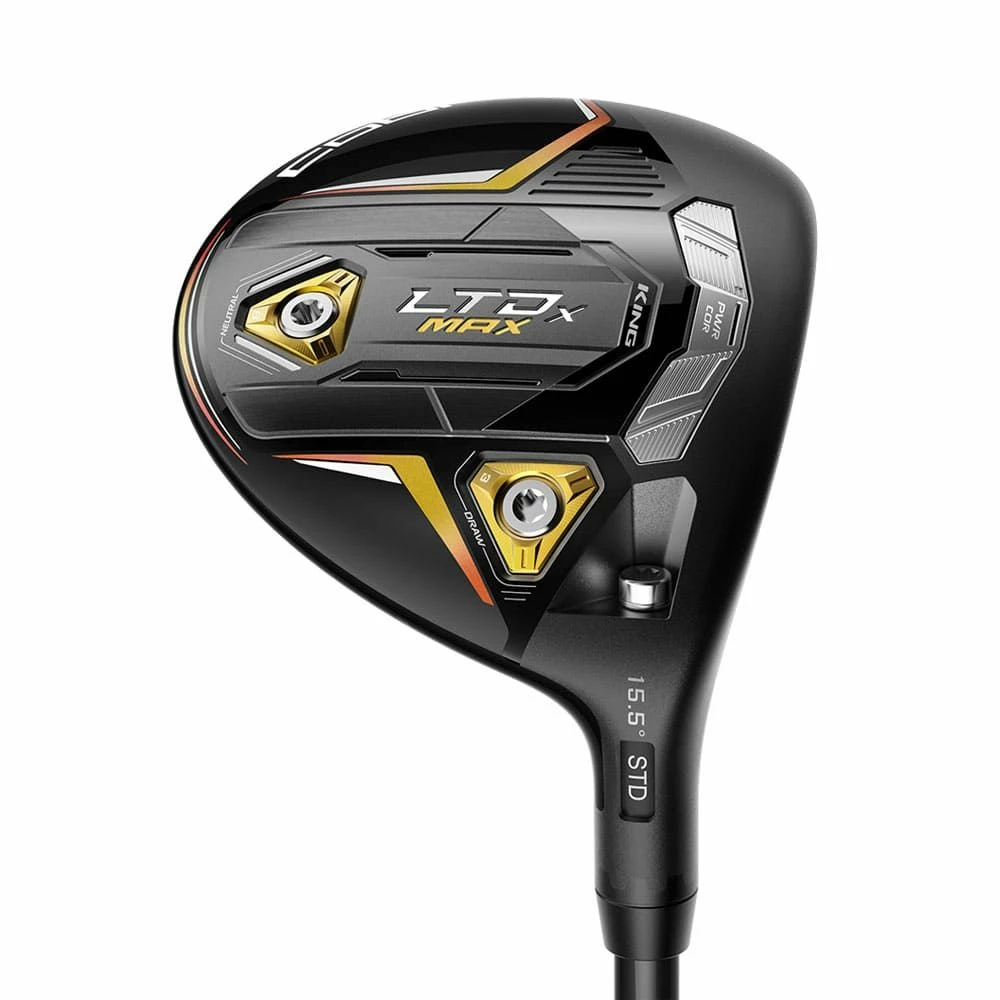

The LTDx MAX fairway blends fast ball speed with extreme forgiveness and features back and heel adjustable weights to provide more or less draw bias.

Adjustable headcover included.

Tech Overview

PWR-COR TECHNOLOGY

PWR-COR Technology is a multi-material weighting system that positions as much weight as possible low and forward. The weighting system utilizes a tungsten internal weight and an aluminum external weight that is positioned right behind the hitting zone to transfer maximum speed to the golf ball at impact with reduced spin.

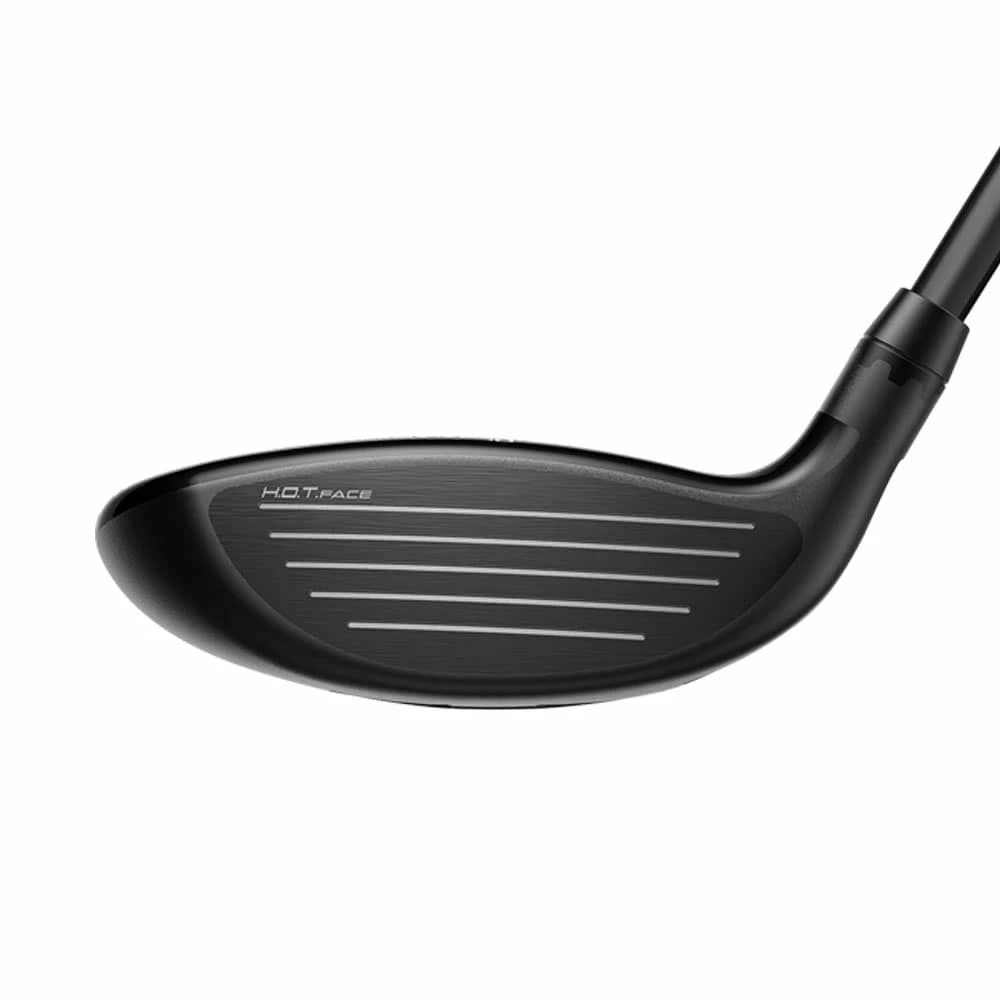

H.O.T FACE TECHNOLOGY

Using machine learning, we’ve created a new variable thickness design that is precision tuned for speed. H.O.T stands for “Highly Optimized Topology.” Using data from thousands of impact simulations, we’ve optimized thicknesses in multiple zones to maximize ball speed across a larger area of the face. These zones create visual peaks and valleys that resemble a topology map, which is how the design got its name.

ADJUSTABLE WEIGHTING

Two adjustable weights (a heavy 12g and a lightweight 3g) can be positioned in the back and heel position. Position the 12g heavy weight in the back for a neutral to draw biased ball flight, or in the heel for max draw bias (11 yards).

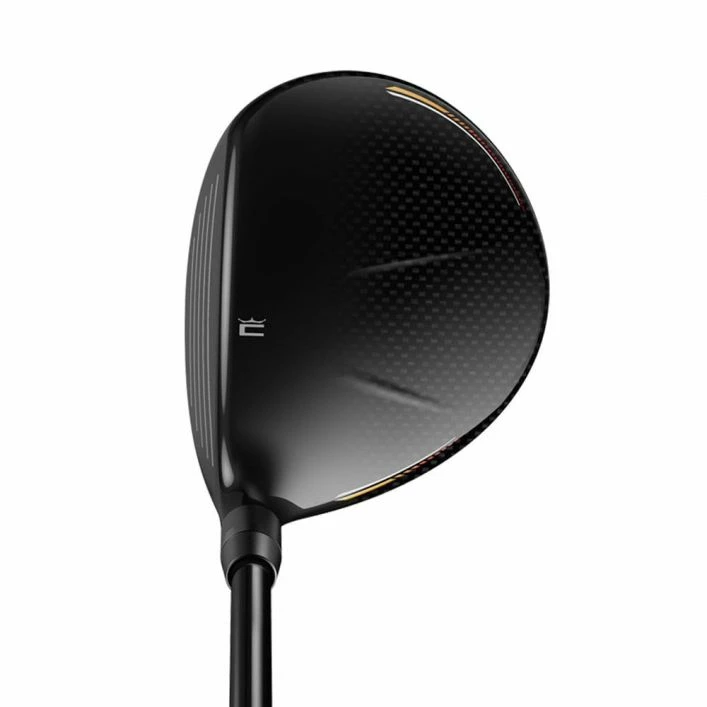

LIGHTWEIGHT CARBON CROWN

A carbon crown is lighter than titanium and frees up more discretionary weight to reposition low within the head to maximize speed and stability.

PROGRESSIVE BAFFLER RAILS

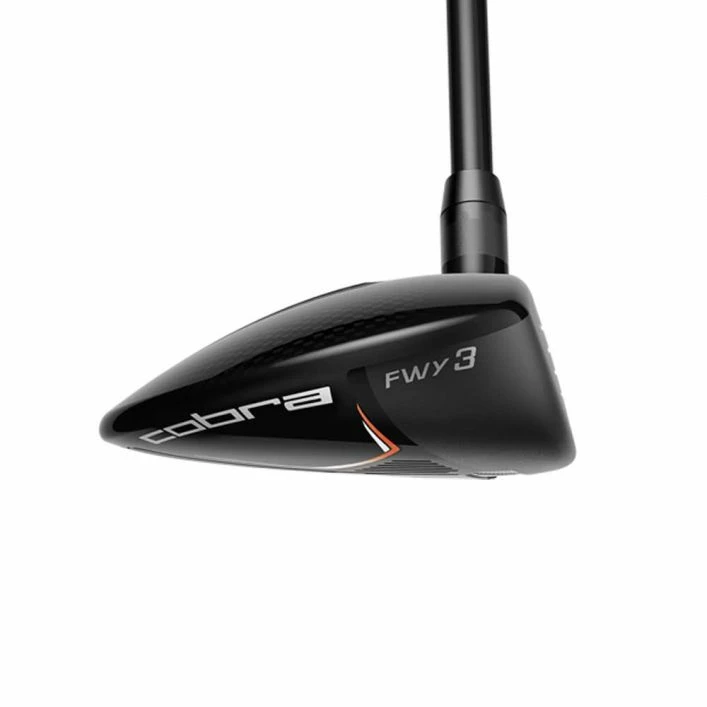

The 3W features no rails to account for a sweeping, shallow swing while the 5W and 7W feature pronounced rails to improve turf interaction for steeper swings.

Specifications

CLUB	LOFT SETTING -1.5° / -1° / -1° Draw / STD° / STD° Draw / +1° / +1° Draw / +1.5°	HEAD VOLUME	LIE ANGLE	LENGTH (Arccos grip adds .25″ in custom)	SWING WEIGHT	SHAFT FLEX	RH/LH
3W	14.0° / 14.5° / 14.5° Draw / 15.5° / 15.5° Draw / 16.5° / 16.5° Draw / 17.0°	162cc	59.00°	43.00″	iM10: D1 Helium: C9.5	S, R, A	RH/LH
5W	17° / 17.5° / 17.5° Draw / 18.5° / 18.5° Draw / 19.5° / 19.5° Draw / 20°	155cc	59.75°	42.50″	iM10: D1 Helium: C9.5	S, R, A	RH/LH
7W	21° / 21.5° / 21.5° Draw / 22.5° / 22.5° Draw / 23.5° / 23.5° Draw / 24°	152cc	60.50°	42.00″	iM10: D1 Helium: C9.5	S, R, A	RH/LH

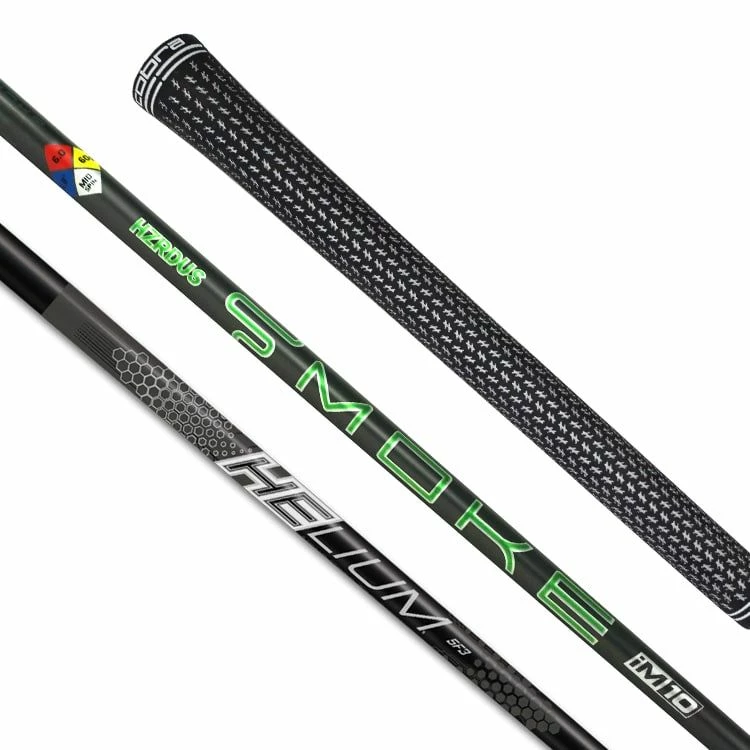

Shafts

PROJECT X HZRDUS Smoke iM10 60

The iM10 features Hexcel’s® incredibly unique iM10 carbon fiber, a very high modulus (stiff) and very high strength carbon fiber allowing for new possibilities in golf shaft design. The iM10 shafts offers unmatched stability in a playable mid-launch & mid-spin design.

PROJECT X HZRDUS Smoke iM10 60

Model	Description	Flex	Shaft Weight	Kick Point	Launch	Spin	Torque	Tip Diameter
PROJECT X HZRDUS Smoke iM10 60	6.0	Stiff	66g	Mid	Mid	Mid	3.7	0.335

UST Helium Nanocore

The Helium wood shafts are a light weight design using materials in innovative ways for the best in feel and stability never seen before in light weight structures. This is for the golfer seeking to maximize distance with longer builds and incredible control.

UST Helium Nanocore

Model	Description	Flex	Shaft Weight	Kick Point	Launch	Spin	Torque	Tip Diameter
UST Helium Nanocore	5F2	Regular	55g	Low	High	High	5.7	0.335
UST Helium Nanocore	5F2	Lite (Senior)	52g	Low	High	High	6.3	0.335

Grips

Lamkin Crossline (58R) - Black/Silver (48.5g)

Lamkin Crossline (58R) – Black (48.5g)

Golf Digest Hot List Gold 2022

Looks And Performance
That Just Hit Different

Three Ways To Improve Your Game

LTDx LS

LTDx LS FWY Compare Image

Spin:
Low

Launch:
Low

Forgiveness:
Medium

EXPLORE

LTDx

LTDx FWY Compare Image

Spin:
Low

Launch:
Medium

Forgiveness:
High

EXPLORE

LTDx MAX

LTDx MAX FWY Compare Image

Spin:
Low-Mid

Launch:
High

Forgiveness:
Extreme

EXPLORE

Find Your Perfect Trajectory

LTDX LS LTDX LTDX MAX

A12g in heel delivers a neutral to soft fade ball flight
B12g in the toe delivers up to 4 yards of additional fade bias

LTDx LS FWY Trajectory

Lower Spin With Higher Forgiveness

A tungsten PWR-COR weight is positioned low and forward for faster ball speed with reduced spin. A 12g & 3g back and heel weight are adjustable to create extreme forgiveness with more or less draw bias.

Our Hottest Face Design

A new H.O.T Face design is precisely tuned for speed using machine learning. Using data from thousands of impact simulations, we’ve created multiple zones with perfected thicknesses to increase ball speed across a larger area of the face.

LTDxMAX FWY multi-material construction tech

Lighter And More Stable

A lighter carbon crown allows more weight to be repositioned low and forward in the PWR-COR to maximize speed and stability.

Premium Aftermarket Shafts

Each model and loft is available in select premium aftermarket shafts. Choose between a variety of structures and weight profiles to find your ideal performance.

Dexterity	Right Hand, Left Hand
Fairway Wood	#3 – 15.5°, #5 – 18.5°, #7 – 22.5°
Flex - Shaft	Senior – UST Helium Nanocore, Regular – Project X HZRDUS Smoke iM10, Stiff – Project X HZRDUS Smoke iM10
